StarShadesBY THE BLINDGUYZOUTDOOR, REIMAGINED.

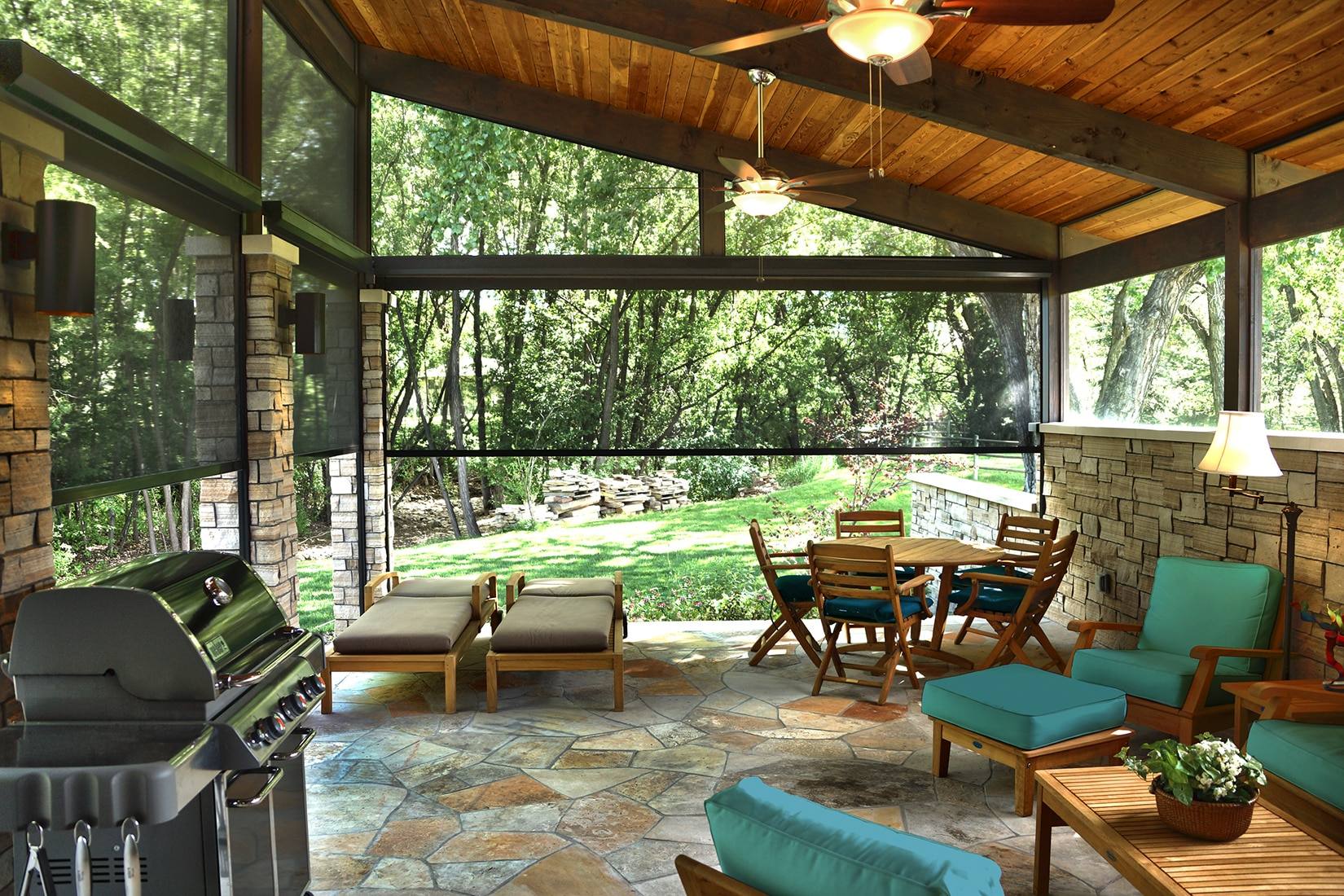

Covered outdoor living space with solar screens, a timber ceiling, stone columns, and garden views.

THE ART OF OUTDOOR LIVING

StarShadesOutdoor ZIP
Screen Systems

Shade. Privacy. Protection. Comfort.

A little more shade.
A lot more living.Outdoor-living inspiration
From The BlindGuyz gallery

Beautifully designed.
Thoughtfully brought to life.

StarShades is The BlindGuyz’ affiliated manufacturing entity for outdoor ZIP screen systems. Together, we bring considered design and polished execution to the spaces where life happens.

Custom manufactured for your space. Professionally measured, specified, and installed by The BlindGuyz.

01 / DESIGNED FOR OUTDOOR LIVING

Outside feels
more like home.

Turn an exposed patio or porch into a more comfortable and usable extension of your home.

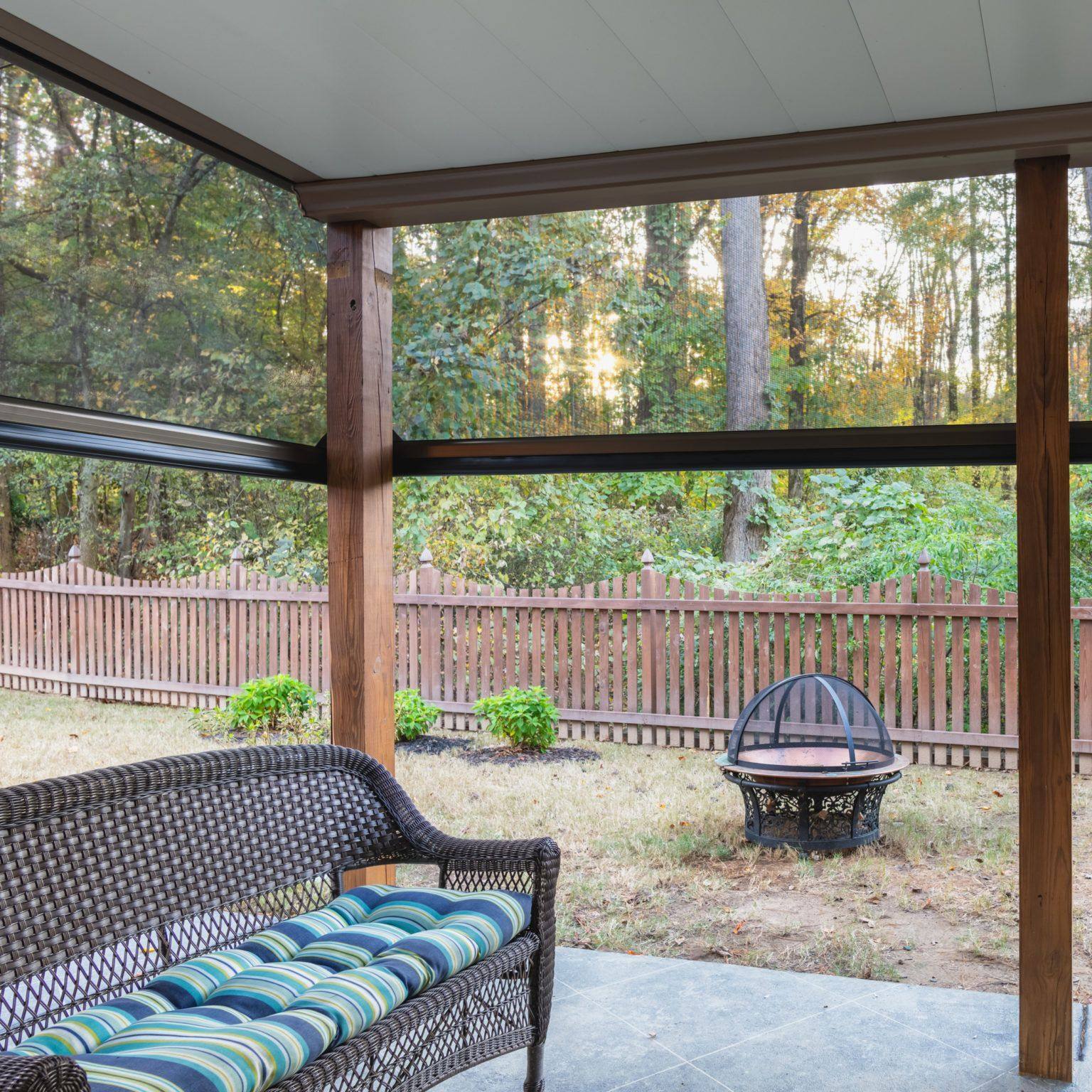

Sunlight filtering through outdoor screens beside wicker seating and a wooded garden.
More room to slow down. Outdoor-living inspiration

Solar & heat control

Less direct sun. A more comfortable place to spend the afternoon.

Glare reduction

More comfort around outdoor televisions, dining tables, and seating areas.

Added privacy

A little more separation, with outward visibility through select screen fabrics.

Insect protection

ZIP-retained edges help minimize side gaps for a more enclosed outdoor space.

Weather-ready construction

Outdoor screen fabric and durable aluminum components, designed for outdoor exposure.

02 / CONTINUOUS RETENTION

StarLock™
ZIP Retention System

Secure from top to bottom.

Unlike a conventional outdoor roller shade with freely hanging fabric, StarLock continuously captures the screen’s welded ZIP edges within aluminum side channels.

The guided construction helps the fabric stay aligned and tensioned, with a clean architectural appearance across the opening.

  • Securely retained fabric
  • Consistent alignment
  • Reduced fabric movement
  • Minimized side gaps
  • A clean, finished appearance
  • Guidance across larger openings
STARLOCK™01 / CROSS-SECTION
StarLock ZIP edge retention cross-sectionThe fabric enters a narrow slot in the side channel. Its enlarged welded ZIP edge is retained inside a guiding path. The cross-section is schematic, not an exact manufacturing profile.Screen fabricWelded ZIP edgeAluminumside channelRetention path
Continuous edge retention Schematic · Not to scale
AUTOALIGN™02 / GUIDED MOVEMENT
AutoAlign fabric alignment schematicBalancing rollers are illustrated beside the guided fabric assembly. Vertical arrows indicate shade travel between two side rails. A horizontal line indicates fabric alignment. Placement is conceptual, not an exact assembly diagram.BalancingrollersSide railsShade travelFabric alignment
Alignment through the shade’s travel Schematic · Not to scale

03 / BALANCED BY DESIGN

AutoAlign™
Technology

Smooth operation.
Engineered into the system.

As a StarShades screen raises and lowers, an integrated balancing system allows the fabric assembly to compensate for movement within the side rails.

It is designed to help maintain fabric alignment, reduce unnecessary stress on the ZIP edges, and promote smoother, quieter operation.

Guided movement. Considered details.

04 / EVERY DETAIL HAS A PURPOSE

Engineered from
the inside out.

A complete system. Each component working with the next.

THE STARSHADES SYSTEM03 / ANATOMY
Exploded overview of the StarShades systemNine numbered components correspond to the accompanying legend: aluminum headbox, tubular motor, reinforced roller tube, performance screen fabric, welded ZIP edges, AutoAlign balancing system, aluminum side channels, fabric-smoothing system, and weighted bottom rail. Components are separated for explanation. Exact profiles and internal positions vary by configuration.123456789
Considered as a complete system Schematic · Not to scale
  1. 01

    Aluminum Headbox

    Protects and conceals the roller, motor, and internal components.

  2. 02

    Tubular Motor

    Concealed inside the roller assembly for clean, convenient operation.

  3. 03

    Reinforced Roller Tube

    Heavy-duty aluminum roller construction designed to support large outdoor screens.

  4. 04

    Performance Screen Fabric

    Outdoor solar-control fabric designed for exposure to sun and changing weather conditions.

  5. 05

    Welded ZIP Edges

    Integrated into the screen fabric for continuous side retention.

  6. 06

    AutoAlign™ Balancing System

    Helps maintain alignment as the screen raises and lowers.

  7. 07

    Aluminum Side Channels

    Capture and guide the ZIP edges throughout the shade’s travel.

  8. 08

    Fabric-Smoothing System

    Designed to promote consistent tension and minimize wrinkling.

  9. 09

    Weighted Bottom Rail

    Provides structure and stability across the bottom of the shade.

05 / ROOM TO THINK BIGGER

Made for
substantial spaces.

StarShades are engineered for substantial outdoor openings. Maximum dimensions vary by fabric, operating system, width-to-height relationship, and installation conditions. Final sizing is determined during project specification.

SELECTED CONSTRUCTION DETAILS

Aluminum alloy
6063-T5
Headbox
Approx. 118 × 118 mm
Side channels
Approx. 38 × 60 mm
Bottom rail
Approx. 75 mm
Reinforced roller tube
70 mm in a documented 4 m-wide configuration

Reference configuration only. Component dimensions are approximate and may vary. Roller tube size is selected for the shade width; the example above is not a maximum-size rating.

06 / PERFORMANCE OUTDOOR FABRICS

Keep the view.
Find your comfort.

Choose the view, privacy, and solar control that’s right for your space.

Outdoor solar-control fabrics soften direct sunlight and reduce glare while bringing a sense of privacy to the spaces you use most.

Fabric color, openness, and lighting all influence the result. The right balance begins with your space.

Screen fabrics provide shade and are not a waterproof enclosure. Outward visibility and privacy change with lighting conditions.

07 / THE FINISHING TOUCH

Choose your finish.

Coordinate the hardware with the architecture of your home or outdoor living space.

Colors shown are illustrative. Physical samples establish the final finish selection.

08 / QUIETLY CONVENIENT

Effortless
motorization.

Outdoor comfort at the touch of a button.

Motorized StarShades operate without visible chains or manual controls. A tubular motor is concealed within the roller assembly, preserving the clean architectural appearance of the system.

Remote control

Operate individual shades or groups of shades from a handheld remote with a compatible system.

Wall control

Convenient, fixed-location operation where supported by the selected motor configuration.

Smart control

Wi-Fi and smart-home integration can be offered with compatible motor configurations.

Available controls and power arrangements depend on the selected motor configuration.

09 / A PLACE FOR EVERY POSSIBILITY

Designed around
your home.

Every project begins with the opening.

The BlindGuyz measures the space, determines the appropriate system configuration, helps select fabric and hardware, and professionally installs the completed system.

  • 01Covered patios
  • 02Porches
  • 03Decks
  • 04Pergolas
  • 05Outdoor kitchens
  • 06Pool areas
  • 07Large exterior openings
  • 08Commercial patios

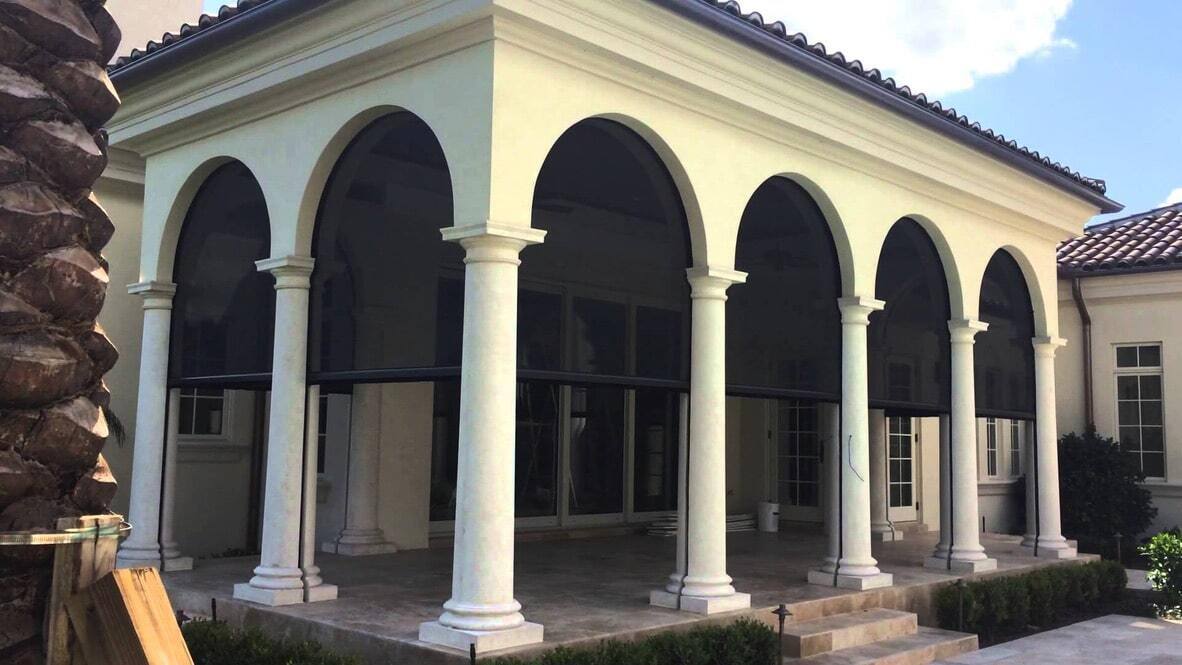

Dark exterior screens fitted within a series of tall arched patio openings.
Architecture, considered. Outdoor-living inspiration
StarShadesBY THE BLINDGUYZThe BlindGuyz — Blinds, Shutters, Shades

11 / ONE SHARED STANDARD

Thoughtful manufacturing.
Personal execution.

StarShades brings outdoor shade manufacturing into The BlindGuyz family. The BlindGuyz brings the experience to make it feel right at home.

With more than 20 years of experience in custom window coverings and shading solutions, The BlindGuyz connects product design with the details that matter on site.

Our aim is simple: make beautiful outdoor shading more accessible and affordable, with quality and polished execution at the center of every project.

01

Professionally measured

Each system is custom specified for the individual opening.

02

Professionally installed

Experienced BlindGuyz installers bring the finished system into your space.

03

Local support

Questions, support, and service are handled through The BlindGuyz.

04

Custom solutions

Fabric, finishes, controls, and installation details are selected around your project.

12 / A CLOSER LOOK

A few
good questions.

Are StarShades custom made?

Yes. Each system is manufactured according to the dimensions and specifications of the individual opening.

What makes a ZIP screen different from a normal roller shade?

A traditional roller shade typically allows the fabric edges to hang freely. StarLock™ ZIP retention captures the fabric edges within aluminum side channels, providing continuous guidance and retention from top to bottom.

Can I still see outside?

Yes. Solar screen fabrics can provide outward visibility while reducing solar exposure and glare. Visibility varies according to fabric color, openness, and lighting conditions.

Do they help with insects?

The retained side edges help minimize the open gaps normally found along conventional outdoor roller shades, creating a more enclosed outdoor environment. They do not form a completely insect-proof seal.

Are they motorized?

Yes. Motorized operation is available and is a preferred configuration for many large outdoor installations.

How large can they be?

StarShades are engineered for substantial openings. Maximum dimensions depend on the selected fabric, operating system, installation conditions, and width-to-height relationship. Final sizing is determined during project specification.

Can several shades operate together?

Compatible motorized systems can be configured for individual or grouped operation.

What colors are available?

Multiple screen and hardware colors are available. The hardware palette includes White, Light Gray, Champagne, Coffee, Dark Gray, and Black. Physical samples establish the final color selection.

MORE LIFE, OUTSIDE.

Your patio.
Reimagined.

Afternoon shade. A little more privacy.
A space that feels like yours.
